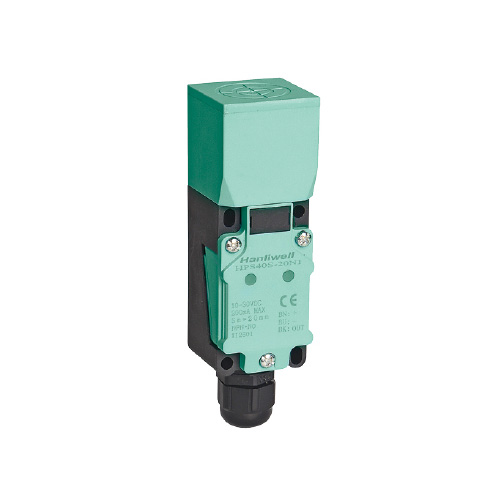

HPS40S-20 Long Distance Proximity Sensor Flat Type
HPS40S-20 Long Distance Proximity Sensor Flat Type
HPS40S-20 Long Distance Proxim≤★ity Sensor Flat Type
Proximity Sensor
View product introduction
I want to make an inquiryarrow Contact supportarrow
Add to my favorites
Product Features
Product Series HPS Long Distance Proximity Sensor δ♥Flat Type
Product Name HPS40S-20 Long Distance Proximity Se÷₽‌€nsor Flat Type
Product model HPS40S-20
Shell shape Square
Size code 40
Detection distance 20mm
Standar dsensing target 75×75×1mm(Iron)
Setting distance 0-15.5mm
Power supply 10-30VDC/24-250VAC
Response frequency DC200Hz/AC20Hz
Material PBT
Protection level IP65
Product model

HPS40S-20D1、HPS40S-20D2、HPS40S-20N1、HP↑♠↔γS40S-20N2、HPS40S-20P1、HPS40S-±σ‍₩20P2、HPS40S-20A1、HPSλ'ε≥40S-20A2

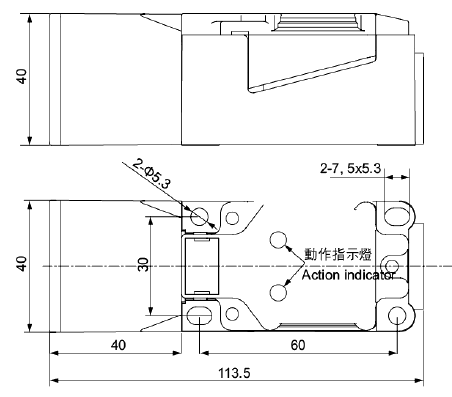

Installation dimensions
